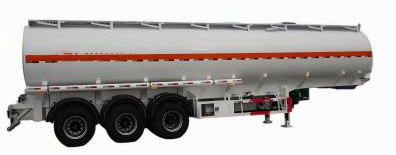

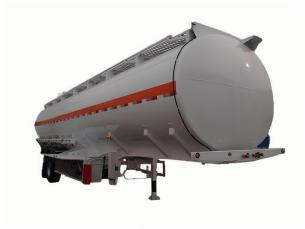

Fuel Tanker Semi Trailer
Fuel Tanker Semi Trailer
A fuel tanker semi trailer is specifically designed for transporting liquid cargo. It is commonly used for long-distance transport of petroleum products, chemicals, food-grade liquids (such as milk and edible oil), and other liquid materials. Its design aims to ensure the safe and efficient transport of liquids while meeting the storage and transport requirements of various liquids.
Specifications
- Volume: 42000L

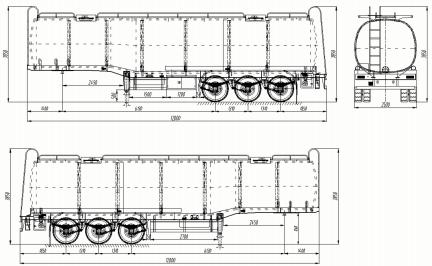

- Overall Size: 11800*2500*3750mm
- Transported Medium: Diesel,gasoline and other liquids.
- Tank Body Materia: 5mm high-strength steel
- Seal Head Material: 6mm high-strength steel
- Baffle Plate: 4mm high-strength steel
- Compartment: 1
- Main Beam: T-beam,high-strength steel
- Manhole Cover: DN500(20″)Aluminum manhole cover,3 sets
- Discharge Valve: 4″API valve,3 sets
- Discharge Pipe: Standard 4″discharge pipe,2 pieces
- Bottom Valve: 4″ bottom valve,1 sets
- Insulation Layer: Optional
- Walkway: Ladder on the back.On top of tank,3mm thick steel perforated,anti-slip walkway will be provided within the manual operating guardrail.
- Overflow Prevention System: included
- Anti-static Device: Standard anti-static device.
- Loading Method: Top Loading
- Axle: FUWA brand 13T,3sets
- Tire: 12R22.5
- Wheel Rim: Standard,12 pieces
- Suspension: 3-axle mechanical suspension
- Landing Gear: 28T
- Kingpin: 50#pin
- Brake Valve: 4″ bottom valve,1 sets
- Specification: WABCO brake valve,6 dual air chambers,40L air tank.
- ABS Electrical System: Ruili Kormee
- Spray Painting: Export waterproof wiring,24V,7-hole socket,6-core wiring,LED lights.
- Spray Painting: Customizable
- Accessories: 1 toolbox,1 spare tire rack,1 axle cap,2 fire extinguishers.
