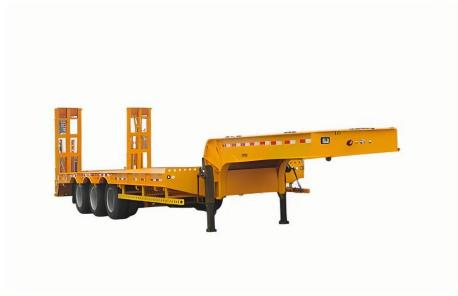

Removable Gooseneck Trailer
Removable Gooseneck Trailer
A removable gooseneck trailer is a low-bed trailer designed for transporting heavy equipment and oversized cargo. Its detachable gooseneck allows the front end to lower to the ground for easy loading and unloading, making it ideal for construction machinery, tracked vehicles, and oversized equipment.
Specifications
- Main Beam: Height: 500mm; Width: 230mm
- Side Beam: 250 I-beam 10/ 8/ 10
- Material: HG60 high-strength steel
- Load Capacity (T): 50-150T
- Bottom Platform: 5 mm thick, checker plate ( or patterned plate) .
- Suspended Beam: Mechanical suspension or air suspension
- Leaf Spring: 120(W) mm x 16( Thickness) mm x 10 layers
- Axle Model/Quantity: Fuwa, 13 sets
- Tires: 12R22.5
- Toolbox: 1 standard type
- Voltage: 24V
- Ramp: Leaf spring or hydraulic type
- Tare Weight: Approx . 9 . 5-19T
- ABS: Optional
- Kingpin: JOST brand 2 .0 or 3 . 5 inches (bolt or welded type)
- Valves: WABCO valves
- Lights: LED lights (designed for overseas markets)

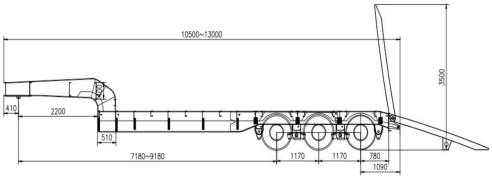

- Overall Dimensions: 15800mm x3000mm x2500mm
